Lithium Iron Phosphate Battery Packs for Robotics
Parameter
Cell type: 26700/3.2V/4Ah
Battery specifications: 26700-16S6P/48V/20Ah
Nominal voltage: 48V
Nominal capacity: 24Ah
Charging voltage: 58.4V
Charging current: ≤10A
Discharge current: 20A
Instant discharge current: 50A
Discharge cut-off voltage: 40V
Finished internal resistance: ≤200mΩ
Battery weight: 15kg
Product size: 300*237*165mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 60℃
Temperature protection: 65℃±5℃
Battery case: cold-rolled plate + powder case grade
Lithium protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, 485 communication and so on
Application: Wide range of applications, industrial machinery and equipment, AGV car and so on
Features
Communication function: LCD screen display voltage and power, easy to display power;
Terminal output: the terminal output interface is used to increase conductive reliability;
Data communication management: The use of Seiko IC+TI charger management chip, accurate data transmission, accurate temperature control, to minimize security risks.
Battery pack safety, special handle, good low temperature performance, long cycle life;
High cycle life of battery pack, in line with low carbon, energy saving, environmental protection value concept;

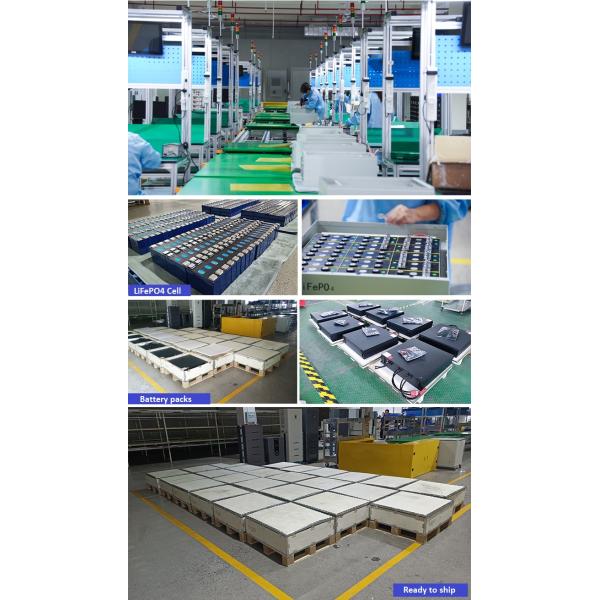

Production Details
From the battery cell to the battery pack, CLF controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer.
Product Tags:
|
|
CLF OEM ODM 48V 20AH LiFePO4 Lithium Iron Battery Pack For Robots Energy Storage Truck EV Golf Carts Vehicle Motorcycle Images
|
